Вот эта трогательная история из
Wound Ballistics and Body Armor in Korea, что была опубликована в 1962 году в
WOUND BALLISTICS
Prepared and published under the direction of
Lieutenant General LEONARD D. HEATON
The Surgeon General, United States Army
Editor in Chief
Colonel JAMES BOYD COATES, Jr., MC
Editor for Wound Ballistics
Major JAMES C. BEYER, MC
OFFICE OF THE SURGEON GENERAL
DEPARTMENT OF THE ARMY
WASHINGTON, D.C., 1962
Wound Ballistics and Body Armor in Korea, что была опубликована в 1962 году в
WOUND BALLISTICS
Prepared and published under the direction of
Lieutenant General LEONARD D. HEATON
The Surgeon General, United States Army
Editor in Chief
Colonel JAMES BOYD COATES, Jr., MC
Editor for Wound Ballistics
Major JAMES C. BEYER, MC
OFFICE OF THE SURGEON GENERAL
DEPARTMENT OF THE ARMY
WASHINGTON, D.C., 1962
Вложения
Ground Troops (World War II)
Unlike helmet design, which had a considerable carryover from World War I development and experience, little if any information was available at the advent of World War II on the possible design of a body armor for ground troops. Numerous military authorities had advocated the use of body armor during World War I, but it had only reached a preliminary testing stage before it was generally rejected. During World War I, the United States had developed several types of armor. One, the Brewster Body Shield, was made of chrome nickel steel, weighed 40 pounds, and consisted of a breastplate and a headpiece. This armor would withstand Lewis machinegun bullets at 2,700 f.p.s. but was unduly clumsy and heavy. In addition, the Metropolitan Museum of Art in February 1918 had designed a breastplate based upon certain 15th century armor. Again, this model weighed 27 pounds; all investigators considered it to be very noisy and thought that it markedly restricted all movements of the wearer. Another extremely interesting model was the scaled waistcoats or jazerans which were constructed of overlapping steel scales fixed to a leather lining. The armor was closely fitting and was considered comfortable. The total weight was 11 pounds.
Numerous investigators in the Ordnance Department and in the other technical services had contemplated the development of armor for ground troops in the early stages of World War II. However, very preliminary investigations had shown that most models were too heavy, were incompatible with standard items of equipment, and tended to restrict the mobility of the soldier. Therefore, the development of armor for ground troops was initially rejected as an unsound idea, and the development of a flyer's armor received more or less full attention. However, continued investigation in the development of lighter weight metallic ballistic material and in the relatively new field of nonmetallic ballistic material led to a resurge in interest for armor for ground troops. Therefore, the historical study must be traced through both types of ballistic material, and initially the types of armor utilizing metallic material will be discussed.
It is difficult to ascertain exactly when the redevelopment of armor for ground troops was initiated, but it apparently began sometime near the middle of 1944. In June 1944, the Army Service Forces requested armor for the protection of soldiers from antipersonnel mines. Another major initiating feature was undoubtedly due to some of the excellent work performed by Lt. Col. I. Ridgeway Trimble, MC, then chief of the surgical service at the 118th General Hospital, Sydney, Australia. Colonel Trimble became very interested in reports concerning the use of armor by Japanese ground troops. After a great deal of difficulty and personal disappointment, he was able to secure a copy of Japanese armor (fig. 326). Based on the Japanese design and his own personal observation as to the areas to be protected and the most commonly encountered wounds and causative agents, he developed a model for ground troop armor (A chronological report of his development of a design for body armor for ground troops has been prepared by Dr. Trimble and is presented on pages 685-689. It is of considerable significance to note the general course the development followed, and it is also of some personal interest to us to see the great many obstacles which had to be surmounted before the responsible individuals developed any great interest and respect for the submitted item. As mentioned by Dr. Trimble, a report of the body armor design and photographs of the Japanese armor were submitted to Dr. George R. Harrison, Chief of the Research Section, General Headquarters, Southwest Pacific Area. The initial report was tendered in April 1944, but owing to the accidental loss of the report and pictures, it was not until 23 May 1944 that the report was finally on its way to Washington. After a review of the material, Dr. Karl T. Compton, Chief, Office of Field Service, Office of Scientific Research and Development, War Department, advised the Commander in Chief, Southwest Pacific Area, that the Ordnance Department was extremely interested in Colonel Trimble's design and felt that it represented an improvement over the one which they were currently considering.-J. C. B., W. F. E., and R. H. H.)
Unlike helmet design, which had a considerable carryover from World War I development and experience, little if any information was available at the advent of World War II on the possible design of a body armor for ground troops. Numerous military authorities had advocated the use of body armor during World War I, but it had only reached a preliminary testing stage before it was generally rejected. During World War I, the United States had developed several types of armor. One, the Brewster Body Shield, was made of chrome nickel steel, weighed 40 pounds, and consisted of a breastplate and a headpiece. This armor would withstand Lewis machinegun bullets at 2,700 f.p.s. but was unduly clumsy and heavy. In addition, the Metropolitan Museum of Art in February 1918 had designed a breastplate based upon certain 15th century armor. Again, this model weighed 27 pounds; all investigators considered it to be very noisy and thought that it markedly restricted all movements of the wearer. Another extremely interesting model was the scaled waistcoats or jazerans which were constructed of overlapping steel scales fixed to a leather lining. The armor was closely fitting and was considered comfortable. The total weight was 11 pounds.
Numerous investigators in the Ordnance Department and in the other technical services had contemplated the development of armor for ground troops in the early stages of World War II. However, very preliminary investigations had shown that most models were too heavy, were incompatible with standard items of equipment, and tended to restrict the mobility of the soldier. Therefore, the development of armor for ground troops was initially rejected as an unsound idea, and the development of a flyer's armor received more or less full attention. However, continued investigation in the development of lighter weight metallic ballistic material and in the relatively new field of nonmetallic ballistic material led to a resurge in interest for armor for ground troops. Therefore, the historical study must be traced through both types of ballistic material, and initially the types of armor utilizing metallic material will be discussed.
It is difficult to ascertain exactly when the redevelopment of armor for ground troops was initiated, but it apparently began sometime near the middle of 1944. In June 1944, the Army Service Forces requested armor for the protection of soldiers from antipersonnel mines. Another major initiating feature was undoubtedly due to some of the excellent work performed by Lt. Col. I. Ridgeway Trimble, MC, then chief of the surgical service at the 118th General Hospital, Sydney, Australia. Colonel Trimble became very interested in reports concerning the use of armor by Japanese ground troops. After a great deal of difficulty and personal disappointment, he was able to secure a copy of Japanese armor (fig. 326). Based on the Japanese design and his own personal observation as to the areas to be protected and the most commonly encountered wounds and causative agents, he developed a model for ground troop armor (A chronological report of his development of a design for body armor for ground troops has been prepared by Dr. Trimble and is presented on pages 685-689. It is of considerable significance to note the general course the development followed, and it is also of some personal interest to us to see the great many obstacles which had to be surmounted before the responsible individuals developed any great interest and respect for the submitted item. As mentioned by Dr. Trimble, a report of the body armor design and photographs of the Japanese armor were submitted to Dr. George R. Harrison, Chief of the Research Section, General Headquarters, Southwest Pacific Area. The initial report was tendered in April 1944, but owing to the accidental loss of the report and pictures, it was not until 23 May 1944 that the report was finally on its way to Washington. After a review of the material, Dr. Karl T. Compton, Chief, Office of Field Service, Office of Scientific Research and Development, War Department, advised the Commander in Chief, Southwest Pacific Area, that the Ordnance Department was extremely interested in Colonel Trimble's design and felt that it represented an improvement over the one which they were currently considering.-J. C. B., W. F. E., and R. H. H.)

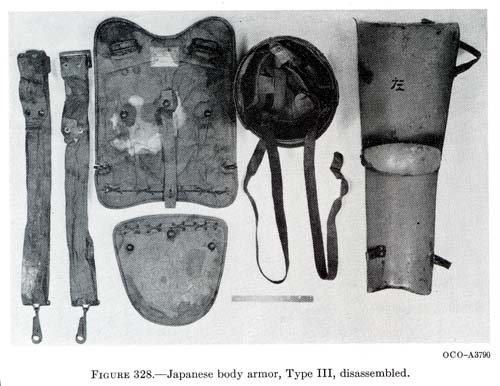

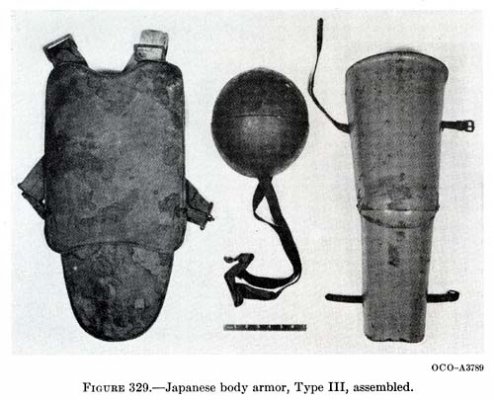

Other types of Japanese body armor (figs. 327, 328, and 329) which were captured in the Pacific consisted of an anterior thoracoabdominal shield with and without lower extremity protection. Various other members of casualty surveys in the Pacific areas, notably in the New Georgia and Bougainville campaigns, were also convinced of the apparent importance which body armor might have in reducing total number of wounds and number of lethal wounds in ground troops.

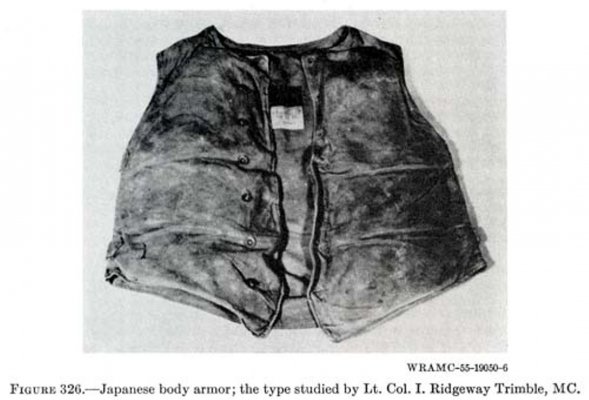

Based upon the armor submitted by Colonel Trimble and on the various other specimens collected by technical observers of the Ordnance Department in the Southwest Pacific Area, an experimental model was developed and this design was known as vest, T34. The armor consisted of 0.684-inch thick carbon steel plates. Owing to the excessive weight of the end item and also to the development of lighter weight ballistic materials, the T34 series was discontinued. Various other experimental models were being tested at about the same time and one of these consisted of the armor, breast, T36, which was patterned somewhat after a World War I model. The vest, series T39, consisted of a small piece of anterior armor with a stitched nylon-webb backing and utilized various metallic ballistic materials, such as steel or aluminum, in the form of overlapping plates. Numerous other experimental models were developed, but only those which resulted in a standardized end item will be discussed.
The vest, T62E1, consisted of two pieces, front and back, which were fastened together at the shoulder by quick-release fasteners. The ballistic materials consisted of 0.102-inch thick aluminum plates and a backing of 5-ply nylon cloth. All of the aluminum plates had a slight overlapping to provide thorough protection, and there was a small anterior flap on the frontpiece which was designed to give additional protection to the region of the heart and great vessels. The vest weighed 9 pounds and 10 ounces and had an area protection of 3.45 square feet. The vest, T62E1, was modified in order to provide additional ballistic protection and resulted in the T64 series which was standardized in August 1945 as the Armor, Vest, M12 (fig. 330).
Based upon the armor submitted by Colonel Trimble and on the various other specimens collected by technical observers of the Ordnance Department in the Southwest Pacific Area, an experimental model was developed and this design was known as vest, T34. The armor consisted of 0.684-inch thick carbon steel plates. Owing to the excessive weight of the end item and also to the development of lighter weight ballistic materials, the T34 series was discontinued. Various other experimental models were being tested at about the same time and one of these consisted of the armor, breast, T36, which was patterned somewhat after a World War I model. The vest, series T39, consisted of a small piece of anterior armor with a stitched nylon-webb backing and utilized various metallic ballistic materials, such as steel or aluminum, in the form of overlapping plates. Numerous other experimental models were developed, but only those which resulted in a standardized end item will be discussed.
The vest, T62E1, consisted of two pieces, front and back, which were fastened together at the shoulder by quick-release fasteners. The ballistic materials consisted of 0.102-inch thick aluminum plates and a backing of 5-ply nylon cloth. All of the aluminum plates had a slight overlapping to provide thorough protection, and there was a small anterior flap on the frontpiece which was designed to give additional protection to the region of the heart and great vessels. The vest weighed 9 pounds and 10 ounces and had an area protection of 3.45 square feet. The vest, T62E1, was modified in order to provide additional ballistic protection and resulted in the T64 series which was standardized in August 1945 as the Armor, Vest, M12 (fig. 330).
Вложения
This M12 vest was made of thicker aluminum plates than the T62E1 series and had additional layers of nylon cloth. It weighed 12 pounds and 3 ounces and provided an area protection of 3.45 square feet. The design had been modified to provide greater protection for the anterior portion of the thorax both by increasing the width of the main frontpiece and also by increasing the size of the anterior flap over the heart and great vessels. In addition, some increase in protection was provided for the axillary regions. However, the areas of the junction of the neck and thorax and of the axillary regions were still relatively uncovered and, as it was seen during the use of the M12 vest during the Korean War, provided a ready access for the entrance of missiles into the thorax. An Apron, Model T65, was also produced to be attached to the M12 vest in order to provide ballistic protection for the lower part of the abdomen and the groin region. The apron could be attached to the bottom of the vest by quick-release fasteners. It was made of 21-ply nylon cloth, weighed 1 pound and 9 ounces, and had an area protection of 0.66 square feet.
A considerable number of the vests and aprons were produced and were scheduled for field testing and observation by a joint medical-ordnance-infantry team12 just at the cessation of the war in the Pacific. In July 1945, 1,000 T62E1 vests with the T65 apron and 1,200 T64 vests were shipped to the Pacific theater for field testing, but this was never accomplished. Therefore, the vest received considerable experimental testing, but it was not until the Korean War that it was utilized in the field. With the rebirth of body armor during the Korean War, the M12 vest was used initially by American troops in conjunction with the newer all-nylon-type vest. Following the completion of the initial surveys and standardization of the final end item, all U.S. frontline troops were equipped with the newer all-nylon or doron vests, and the M12 vests were used by Republic of Korea troops.
A considerable number of the vests and aprons were produced and were scheduled for field testing and observation by a joint medical-ordnance-infantry team12 just at the cessation of the war in the Pacific. In July 1945, 1,000 T62E1 vests with the T65 apron and 1,200 T64 vests were shipped to the Pacific theater for field testing, but this was never accomplished. Therefore, the vest received considerable experimental testing, but it was not until the Korean War that it was utilized in the field. With the rebirth of body armor during the Korean War, the M12 vest was used initially by American troops in conjunction with the newer all-nylon-type vest. Following the completion of the initial surveys and standardization of the final end item, all U.S. frontline troops were equipped with the newer all-nylon or doron vests, and the M12 vests were used by Republic of Korea troops.
Вложения
А вот рапорт нашего подполковника о его изысканиях
REPORT OF DEVELOPMENT OF A DESIGN FOR BODY ARMOR FOR THE FOOT SOLDIER
On or about 1 September 1942 I read in the Sydney newspapers about an armored Japanese vest captured in New Guinea by Australian soldiers during the Papuan campaign, and consulted Dr. Dew, Professor of Surgery at Sydney University, as to where I might procure such a vest. He wrote to Colonel W. J. Hailes, Medical Directorate, L.H.Q. Victoria Barracks, Melbourne, whose letter of 12 September 1942 told me that work along these lines was being studied in the Middle East by a member of the Medical Research Council of Great Britain. Lt. Colonel R. V. Graham's letter of 16 November 1942 written from the 103rd Australian General Hospital stated that he had asked his son who was in New Guinea at the time to try to procure such a vest for me.
Colonel C. A. Jillet, D.D.O.S. First Australian Army, wrote 30 November 1942 that the First Army had not received such equipment.
Letters written to the Police Departments of the cities of New York, Chicago, Pittsburgh, and Los Angeles resulted in replies during January and February 1943 telling of the protective armor used by them.
19 November 1942 I wrote Brig. General Hanford MacNider asking him to try to procure a vest for me in New Guinea, and asking him for his ideas on protection for foot soldiers.
Colonel C. N. Kellaway, of the Australian Army, and Director of the Walter and Eliza Hall Institute of Research in Pathology and Medicine, personally brought me from Melbourne information relative to work done by the Body Protection Committee of the Medical Research Counsel of Great Britain.
25 November 1942 I called on Colonel C. C. Alexander, Chief of Staff to Maj. General Richard Marshall, Commanding General, SOS, to ask him how to procure a Japanese vest telling him that I had for a long period thought some practical armor protection could be worked out for ground troops. Colonel Alexander was most interested and advised me to see Colonel Carroll, the Chief Surgeon, and Colonel Thorpe of G2. Colonel Carroll was enthusiastic and spoke of his having thought of including the spade of the entrenching tool as body protection. Major Suave in Colonel Thorpe's office promised to obtain the Japanese vest for me.
9 January 1943 a letter came to me from G.H.Q., SWPA., Rear Echelon entitled "Captured Japanese Bullet Proof Vests," which attached a letter from the office of the Director of Staff Duties, L.H.Q., Australian Army, acknowledging my request on 24 November 1942 for the loan of a Japanese Bullet Proof Vest, adding that the only one in the possession of the Australian Army was being tested at the Broken Hill Pty. Steel Works, Newcastle, N.S.P., and suggesting that I inspect the vest at these premises.
17 February 1943 I received a captured Japanese vest (fig. 334) from Commander J. C. Morrow of the Australian destroyer "Arunta" through one of his officers, Midshipman Norman H. Smith. I showed it to Colonel Carroll and Colonel Alexander and on 26 Feb. 1943 had the Signal Corps make drawings and pictures of it.
16 April 1943 the U.S. Quartermaster Department of G4, SOS, asked me to try out some plastic material as possible use in body armor so Major Coleman of that department and I made some firing tests on the shooting range at Long Bay, N.S.W., the plastic material being easily pierced and fragmented by the caliber .45 automatic pistol and Thompson submachinegun bullet.
22 March 1943 Mr. R. M. Service of the Australian Army Inventions Directorate forwarded to me the analysis of the armor plate of the captured Japanese vest and that of some Australian steel submitted by an Australian civilian, a Mr. R. Welch, who was trying to interest the Australian and American armies in a steel jacket made of individual pieces of steel approximately 4 inches square, linked together with a hinge on all four edges. Mr. Welch's armor was put on by inserting one's head through a hole in the center of the garment, like putting on a poncho. Beginning at this time, at the request of Mr. Welch and Mr. Service, Lt. Colonel D. Garrison of the U.S. Ordnance and myself tested Mr. Welch's vest on the firing range as well as a model based on the Japanese vest in my possession and made for me by chief operating room nurse, 1st Lt. A. M. Seney. The plates for my vest were six large ones (fig. 335), overlapping and placed inside the vest, in accordance with the Japanese plan (fig. 336). However, my plates were made from plaster casts moulded on a man of 150 lbs, 5 ft. 7 in. in height and covered more of the regions of the collar bones, the upper part of the breast bone, the flanks and the lower abdomen than did the Japanese.

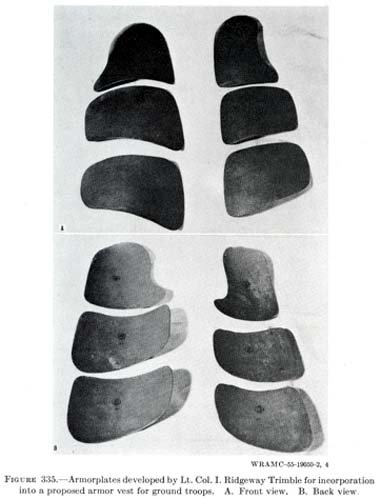

Mr. Welch kindly offered to hammer out for me some steel plates in exact accordance with my plaster casts, and we used these new plates of mine to test on the firing range as well as testing his linked steel armor.
His armor proved entirely unsuitable, because a missile striking a hinged joint would penetrate the armor in the majority of instances.
25 March 1943 I sent to Brig. General C. C. Alexander, Hq. USASOS, APO 501 the first summary of my study on protective body armor, telling of my possession of the Japanese vest and recommending a vest "constructed along the lines of the captured Japanese one" for our own army. This report was forwarded by General Alexander to the Chief Surgeon and the Chief Ordnance Officer, SOS Headquarters, APO 501.
13 June 1943 Brig. General J. L. Holman wrote to me requesting that my set of Japanese armor be sent to the Chief Ordnance Officer in Washington, D.C. through Base Section 3, APO 923. This armor was sent by me 17 June 1943, and acknowledged by General Holman 20 June 1943.
REPORT OF DEVELOPMENT OF A DESIGN FOR BODY ARMOR FOR THE FOOT SOLDIER
On or about 1 September 1942 I read in the Sydney newspapers about an armored Japanese vest captured in New Guinea by Australian soldiers during the Papuan campaign, and consulted Dr. Dew, Professor of Surgery at Sydney University, as to where I might procure such a vest. He wrote to Colonel W. J. Hailes, Medical Directorate, L.H.Q. Victoria Barracks, Melbourne, whose letter of 12 September 1942 told me that work along these lines was being studied in the Middle East by a member of the Medical Research Council of Great Britain. Lt. Colonel R. V. Graham's letter of 16 November 1942 written from the 103rd Australian General Hospital stated that he had asked his son who was in New Guinea at the time to try to procure such a vest for me.
Colonel C. A. Jillet, D.D.O.S. First Australian Army, wrote 30 November 1942 that the First Army had not received such equipment.
Letters written to the Police Departments of the cities of New York, Chicago, Pittsburgh, and Los Angeles resulted in replies during January and February 1943 telling of the protective armor used by them.
19 November 1942 I wrote Brig. General Hanford MacNider asking him to try to procure a vest for me in New Guinea, and asking him for his ideas on protection for foot soldiers.
Colonel C. N. Kellaway, of the Australian Army, and Director of the Walter and Eliza Hall Institute of Research in Pathology and Medicine, personally brought me from Melbourne information relative to work done by the Body Protection Committee of the Medical Research Counsel of Great Britain.
25 November 1942 I called on Colonel C. C. Alexander, Chief of Staff to Maj. General Richard Marshall, Commanding General, SOS, to ask him how to procure a Japanese vest telling him that I had for a long period thought some practical armor protection could be worked out for ground troops. Colonel Alexander was most interested and advised me to see Colonel Carroll, the Chief Surgeon, and Colonel Thorpe of G2. Colonel Carroll was enthusiastic and spoke of his having thought of including the spade of the entrenching tool as body protection. Major Suave in Colonel Thorpe's office promised to obtain the Japanese vest for me.
9 January 1943 a letter came to me from G.H.Q., SWPA., Rear Echelon entitled "Captured Japanese Bullet Proof Vests," which attached a letter from the office of the Director of Staff Duties, L.H.Q., Australian Army, acknowledging my request on 24 November 1942 for the loan of a Japanese Bullet Proof Vest, adding that the only one in the possession of the Australian Army was being tested at the Broken Hill Pty. Steel Works, Newcastle, N.S.P., and suggesting that I inspect the vest at these premises.
17 February 1943 I received a captured Japanese vest (fig. 334) from Commander J. C. Morrow of the Australian destroyer "Arunta" through one of his officers, Midshipman Norman H. Smith. I showed it to Colonel Carroll and Colonel Alexander and on 26 Feb. 1943 had the Signal Corps make drawings and pictures of it.
16 April 1943 the U.S. Quartermaster Department of G4, SOS, asked me to try out some plastic material as possible use in body armor so Major Coleman of that department and I made some firing tests on the shooting range at Long Bay, N.S.W., the plastic material being easily pierced and fragmented by the caliber .45 automatic pistol and Thompson submachinegun bullet.
22 March 1943 Mr. R. M. Service of the Australian Army Inventions Directorate forwarded to me the analysis of the armor plate of the captured Japanese vest and that of some Australian steel submitted by an Australian civilian, a Mr. R. Welch, who was trying to interest the Australian and American armies in a steel jacket made of individual pieces of steel approximately 4 inches square, linked together with a hinge on all four edges. Mr. Welch's armor was put on by inserting one's head through a hole in the center of the garment, like putting on a poncho. Beginning at this time, at the request of Mr. Welch and Mr. Service, Lt. Colonel D. Garrison of the U.S. Ordnance and myself tested Mr. Welch's vest on the firing range as well as a model based on the Japanese vest in my possession and made for me by chief operating room nurse, 1st Lt. A. M. Seney. The plates for my vest were six large ones (fig. 335), overlapping and placed inside the vest, in accordance with the Japanese plan (fig. 336). However, my plates were made from plaster casts moulded on a man of 150 lbs, 5 ft. 7 in. in height and covered more of the regions of the collar bones, the upper part of the breast bone, the flanks and the lower abdomen than did the Japanese.
Mr. Welch kindly offered to hammer out for me some steel plates in exact accordance with my plaster casts, and we used these new plates of mine to test on the firing range as well as testing his linked steel armor.
His armor proved entirely unsuitable, because a missile striking a hinged joint would penetrate the armor in the majority of instances.
25 March 1943 I sent to Brig. General C. C. Alexander, Hq. USASOS, APO 501 the first summary of my study on protective body armor, telling of my possession of the Japanese vest and recommending a vest "constructed along the lines of the captured Japanese one" for our own army. This report was forwarded by General Alexander to the Chief Surgeon and the Chief Ordnance Officer, SOS Headquarters, APO 501.
13 June 1943 Brig. General J. L. Holman wrote to me requesting that my set of Japanese armor be sent to the Chief Ordnance Officer in Washington, D.C. through Base Section 3, APO 923. This armor was sent by me 17 June 1943, and acknowledged by General Holman 20 June 1943.
Вложения
16 September 1943 I wrote General Holman objecting to a public demonstration of body armor before the press by Mr. R. Welch at Base Section 7. The armor was apparently that of his design since the Sydney newspaper account, dated 15 September 1943, spoke of light steel plates linked together; but the enclosing tunic in the photograph published by the newspaper was similar to my modification of the Japanese one. Mr. Welch's original armor had no tunic. The performance of the vest against various types of firearms was reported in this paper. The demonstration was made without consulting our army or intelligence at any time.
23 December 1943 Colonel W. C. Cauthen, Chief Ordnance Officer, USASOS, APO 501, wrote asking that the vest which I designed be submitted to the Chief of Ordnance. This vest was taken to the Ordnance at APO 501 by me 2 January 1944 and kept by Ordnance 501 for me until my return from duty in New Guinea, 15 April 1944.
15 February 1944 Maj. General N. F. Twining, Commanding General of the 15th Air Force, wrote, asking me to bring my vest to the attention of the Head Flight Surgeon of the 5th Air Force. I was in New Guinea at the time but submitted the vest to the office of the Flight Surgeon at APO 501, 15 April 1944.
20 April 1944 a complete set of blue prints of my vest was made at the office of the Surgeon, 5th Air Force.
23 April 1944, at the direction of the Chief Surgeon, USASOS, APO 501, I submitted a final report of the body armor to the Research and Development Board, Hq., GHQ, APO 500 with an endorsement by the Chief Surgeon, Brig. General G. B. Denit. The receipt of this information was acknowledged by Dr. G. R. Harrison, Chairman of this Board. The final model of the vest submitted by me differed from the Japanese in the following particulars:
"a. The vest and its metal plates are designed in a larger size than the Japanese. The plates were hammered out of steel from plaster casts moulded on a soldier 5'7" in height weighing 150 pounds. These plates should fit all soldiers except those of an extremely small or large stature. (A marking of "medium" in Japanese characters on one of their vests indicates that they are manufacturing them in more than one size.)
b. The space at the base of the neck just above the breast bone and the region of the large blood vessels just beneath the collar bones are covered in the new design.
c. Better metal protection is given the flanks and the lower part of the abdomen.
d. A metal plate is added on the inside of the back of the vest to cover the base of the spine and the kidney areas.
e. The button arrangement of fastening the vest down the front has been eliminated because it takes too long to discard the vest by this method. The front of the vest should be in one piece. The vest should be fastened by one or two clasps along the left side of the chest and flank, and by a clasp on each broad shoulder strap of the vest. These last two clasps should be arranged sufficiently low on the shoulder so as not to be pressed on by the rifle when carried on the shoulder or by the butt of the rifle when firing. By this arrangement the vest can quickly be discarded in any direction even with overlying cartridge belts, etc.
f. A small curved strip of metal should be incorporated into each shoulder strap to help prevent the wounds incurred by missiles entering the chest through the space above the collar bones, when a man is charging with the upper part of the body bent forward.
g. In soldiers or sailors in stationary positions, where extra weight is not so important, such as crews of antiaircraft guns, additional metal plates could be added to protect the back and shoulders from gun fire."
I. RIDGEWAY TRIMBLE,
Lt. Colonel, MC,
Chief of Surgical Service,
118th General Hospital, APO 927
23 December 1943 Colonel W. C. Cauthen, Chief Ordnance Officer, USASOS, APO 501, wrote asking that the vest which I designed be submitted to the Chief of Ordnance. This vest was taken to the Ordnance at APO 501 by me 2 January 1944 and kept by Ordnance 501 for me until my return from duty in New Guinea, 15 April 1944.
15 February 1944 Maj. General N. F. Twining, Commanding General of the 15th Air Force, wrote, asking me to bring my vest to the attention of the Head Flight Surgeon of the 5th Air Force. I was in New Guinea at the time but submitted the vest to the office of the Flight Surgeon at APO 501, 15 April 1944.
20 April 1944 a complete set of blue prints of my vest was made at the office of the Surgeon, 5th Air Force.
23 April 1944, at the direction of the Chief Surgeon, USASOS, APO 501, I submitted a final report of the body armor to the Research and Development Board, Hq., GHQ, APO 500 with an endorsement by the Chief Surgeon, Brig. General G. B. Denit. The receipt of this information was acknowledged by Dr. G. R. Harrison, Chairman of this Board. The final model of the vest submitted by me differed from the Japanese in the following particulars:
"a. The vest and its metal plates are designed in a larger size than the Japanese. The plates were hammered out of steel from plaster casts moulded on a soldier 5'7" in height weighing 150 pounds. These plates should fit all soldiers except those of an extremely small or large stature. (A marking of "medium" in Japanese characters on one of their vests indicates that they are manufacturing them in more than one size.)
b. The space at the base of the neck just above the breast bone and the region of the large blood vessels just beneath the collar bones are covered in the new design.
c. Better metal protection is given the flanks and the lower part of the abdomen.
d. A metal plate is added on the inside of the back of the vest to cover the base of the spine and the kidney areas.
e. The button arrangement of fastening the vest down the front has been eliminated because it takes too long to discard the vest by this method. The front of the vest should be in one piece. The vest should be fastened by one or two clasps along the left side of the chest and flank, and by a clasp on each broad shoulder strap of the vest. These last two clasps should be arranged sufficiently low on the shoulder so as not to be pressed on by the rifle when carried on the shoulder or by the butt of the rifle when firing. By this arrangement the vest can quickly be discarded in any direction even with overlying cartridge belts, etc.
f. A small curved strip of metal should be incorporated into each shoulder strap to help prevent the wounds incurred by missiles entering the chest through the space above the collar bones, when a man is charging with the upper part of the body bent forward.
g. In soldiers or sailors in stationary positions, where extra weight is not so important, such as crews of antiaircraft guns, additional metal plates could be added to protect the back and shoulders from gun fire."
I. RIDGEWAY TRIMBLE,
Lt. Colonel, MC,
Chief of Surgical Service,
118th General Hospital, APO 927
Вложения
Так описывает наш броник

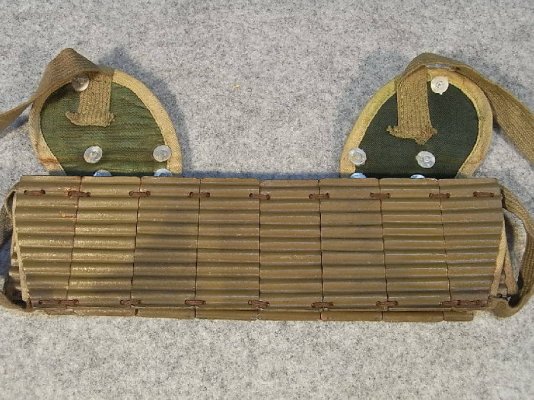

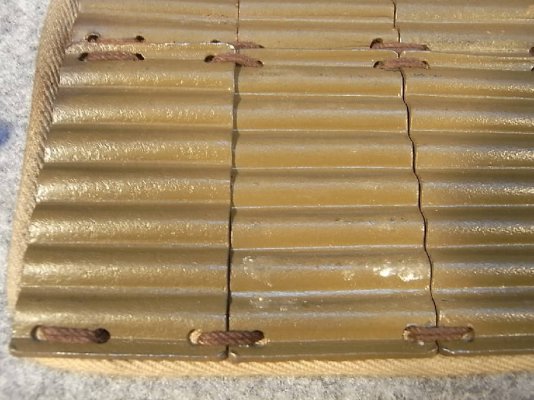

b. Body armor. (1) Bullet-proof vest. The vest (fig. 294) is made from olive-green drill cloth, with 3 pockets on each side to accommodate armor plates arranged in fish-scale fashion. Characteristics are as follows:
Weight complete 9 pounds.
Thickness of plates 0.08 inch.
Plate overlap 0.05 inch.
It is believed that the weight of this vest would preclude its general use by infantry and probably would tend to confine its use to special troops. Tests have shown that the plates are penetrated easily by .303 ball ammunition at 100 yards range, with a 30° angle of impact from normal.
Figure 294. Bullet-proof vest
b. Body armor. (1) Bullet-proof vest. The vest (fig. 294) is made from olive-green drill cloth, with 3 pockets on each side to accommodate armor plates arranged in fish-scale fashion. Characteristics are as follows:
Weight complete 9 pounds.
Thickness of plates 0.08 inch.
Plate overlap 0.05 inch.
It is believed that the weight of this vest would preclude its general use by infantry and probably would tend to confine its use to special troops. Tests have shown that the plates are penetrated easily by .303 ball ammunition at 100 yards range, with a 30° angle of impact from normal.
Figure 294. Bullet-proof vest
Вложения

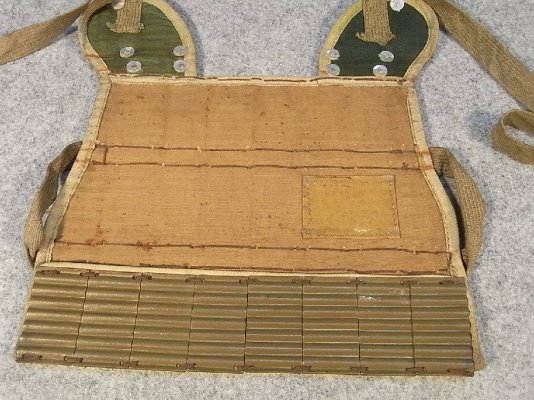

(2) Body protector. No details are available concerning this body protector (fig. 295), but it is reasonable to assume that it is made from an armor plate of thickness approximating that of the bullet-proof vest. It is possible that the armor plate is in 3 sections for purposes of flexibility.
Figure 295. Unidentified body protector
Figure 295. Unidentified body protector
Вложения
Sergeevich64
Местный

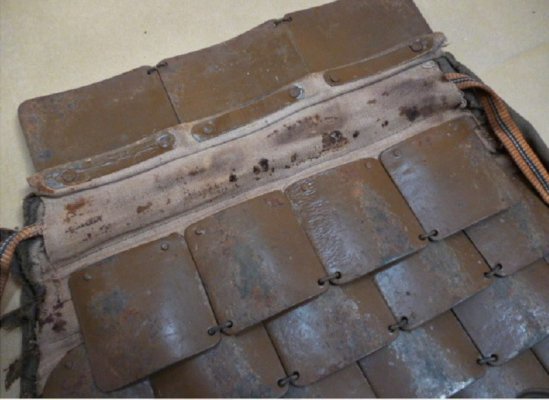

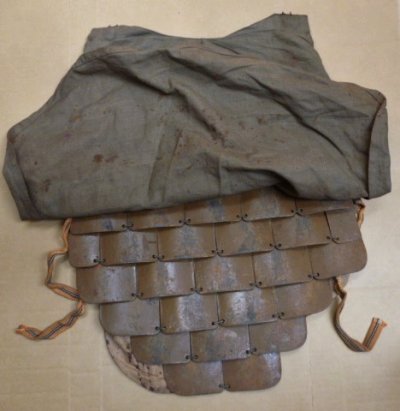

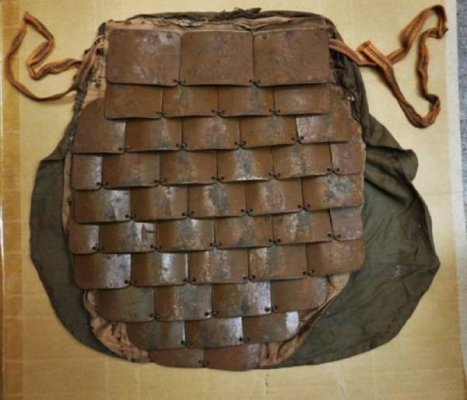

Судя,по подтёкам ржавчины-железные пластины.НО- ВЕШШ!!Технология!
